LiNbO3 SAW Wafer

LiNbO3 is a good acousto-optic crystal and used for surface acoustic wave (SAW) wafer and A-O modulators. LiNbO3 wafers are used for fabricating SAW devices such as filters, oscillators and resonators. Dream Lasers provides large quantities of LiNbO3 boule, a-cut or finished ¦µ3" wafers up to 5,000 pieces per month at very competitive prices. The standard specifications of ¦µ3" LiNbO3 wafers are listed in the following Table. Other specs. are available to meet your special requirements.

Diameter: ¦µ40.0mm, ¦µ50.8mm, ¦µ76.2mm , ¦µ101.6mm
Thickness: 0.2~1.0mm

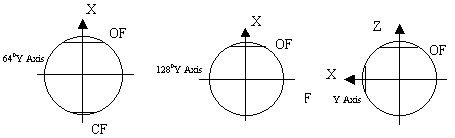

Orientation: X, Y, Z, 127.86 ¡ãY, 64 ¡ãY, 135 ¡ãY, YZ-cut,
Ref. flat orientation: X or Y
Ref. Flat width: 16¡À 2mm, 18¡À 2mm, 22¡À 2mm, 32¡À 2mm
Bow: less than 20m   m
Orientation Tolerances: within 10 arc min. or better
Standard polishing: one side polished 20/10 Scratch/Dig, Another side is inspection polished
