Optical Crown Glass

In optical crown glass, a low-index commercial-grade glass, the index of refraction, transmittance, and homogeneity are not controlled as carefully as they are in optical-grade glasses such as BK7. Optical crown is suitable for applications in which component tolerances are fairly loose and as a substrate material for mirrors.

Optical Crown Glass Constants Constants
Abbé Constant	58.5
Dispersion	(n_F - n_C) = 0.0089
Density	2.55 g/cm^-3
Young's Modulus	7.15 x 10⁹ dynes/mm²
Poisson's Ratio	0.235
Specific Heat Cp (20° to 100°C)	0.184 cal/g-°C
Coefficient of Linear Expansion (20° to 300°C)	9.3 x 10^-6/°C
Stress Birefringence, (Yellow Light)	10 nm/cm
Melt-to-Melt Mean Index Tolerance	±0.001
Transformation Temperature	521°C
Softening Point	708°C

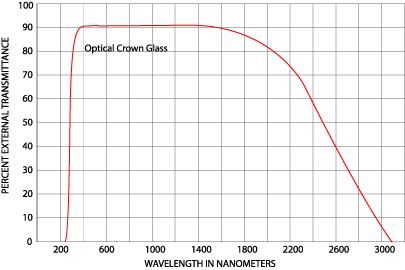

Transmittance characteristics for optical crown are shown the figure below.

External transmittance for 10-mm-thick uncoated optical crown glass
